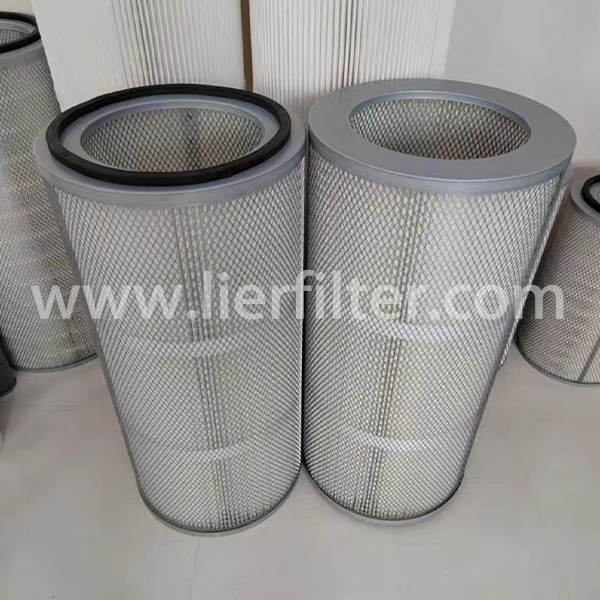

Dust removal air filter element
Introduction
The self-cleaning air cartridge is widely used and it can be cleaned by the pulse back-blowing of the system so as to prolong service life of it.2. Application
2.1 Pre-strainer used in air compressor, machine for making oxygen, gas turbine and blower can ensure the internal of air power equipment to be not worn because of dust.
2.2 Air in dust workshop should be exhausted and purified to guarantee environment without contamination. Filtration material used is an advanced material from abroad, without dust adsorbed, good back-blowing effect, high ventilating and long service life.
2.3 Dust recovery: the filter can recover dust of spraying coating workshop in which products are manufactured such as refrigerator, air conditioner and washer.3 Cartridge-type: Round cartridge, elliptic and cone types.
型号 Model | 型式 Model | 外径D(mm) | 内径d(mm) | 高度H(mm) | 效率(%)(1μm) | 额定风量阻力(%) (m³/h&Pa) |
|---|---|---|---|---|---|---|
| ZKL1-405×H | 圆筒 | 405 | 291 | 320、330、400、450、500、560、600、605、660、665、670、700、710、750、762、800、865、900、910、915、1000 | 99.9 | 以外径325为标准的圆筒滤芯额定风量阻力 H=500 780/150 H=560 870/150 H=600 935/150 H=660 1025/150 H=700 1090/150 H=750 1170/150 H=865 1350/150 H=900 1400/150 H=1000 1500/150 |
| ZKL1-350×H | 圆筒 | 350 | 240 | 99.9 | ||
| ZKL1-330×H | 圆筒 | 330 | 220 | 99.9 | ||
| ZKL1-325×H | 圆筒 | 325 | 215 | 99.9 | ||
| ZKL1-323×H | 圆筒 | 323 | 212 | 99.9 | ||
| ZKL1-320×H | 圆筒 | 320 | 210 | 99.9 | ||
| ZKL1-173×H | 圆筒 | 173 | 88 | 99.9 | ||
| ZKL2-324×H | 锥形 | 324 | 213 | 99.9 | ||
| ZKL2-405×H | 锥形 | 405 | 325 | 99.9 | ||
| ZKL3-360×H | 椭圆 | 长360 | 短285 | 99.9 |
